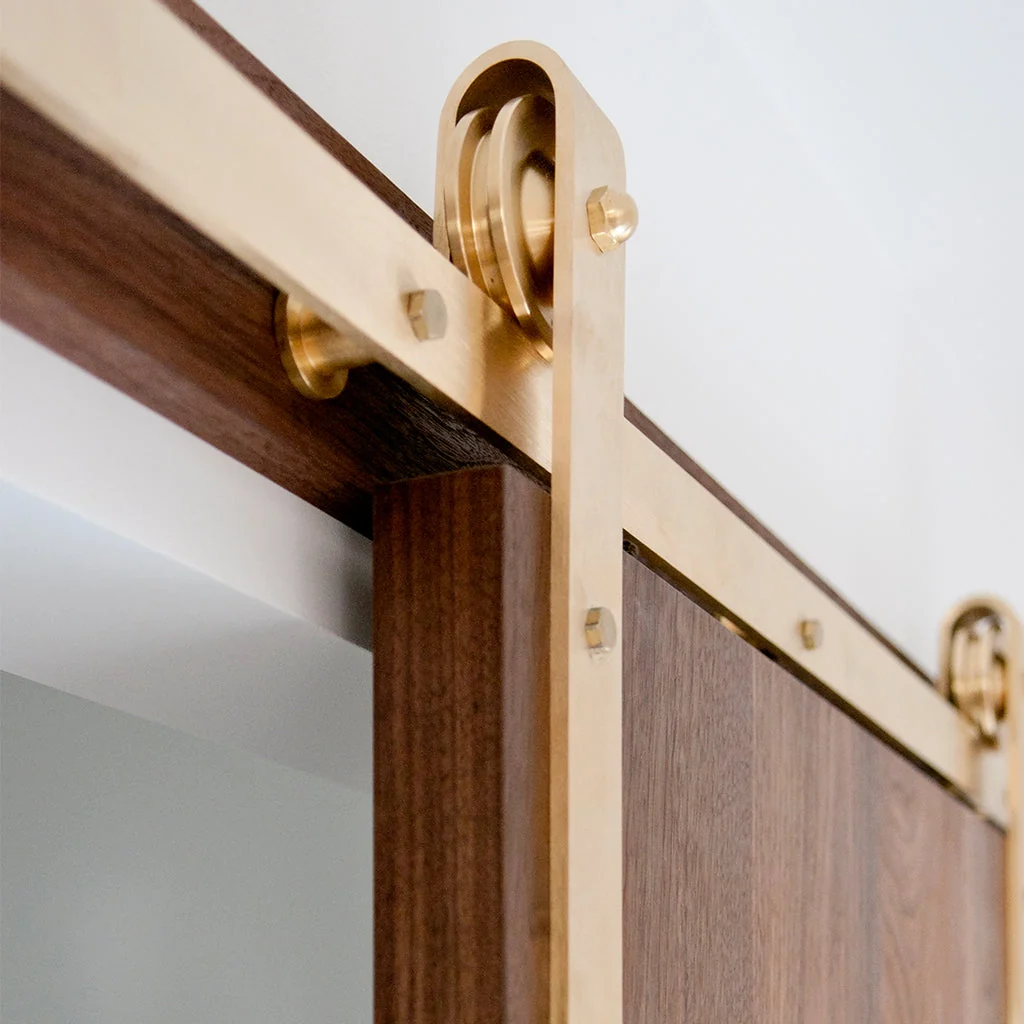

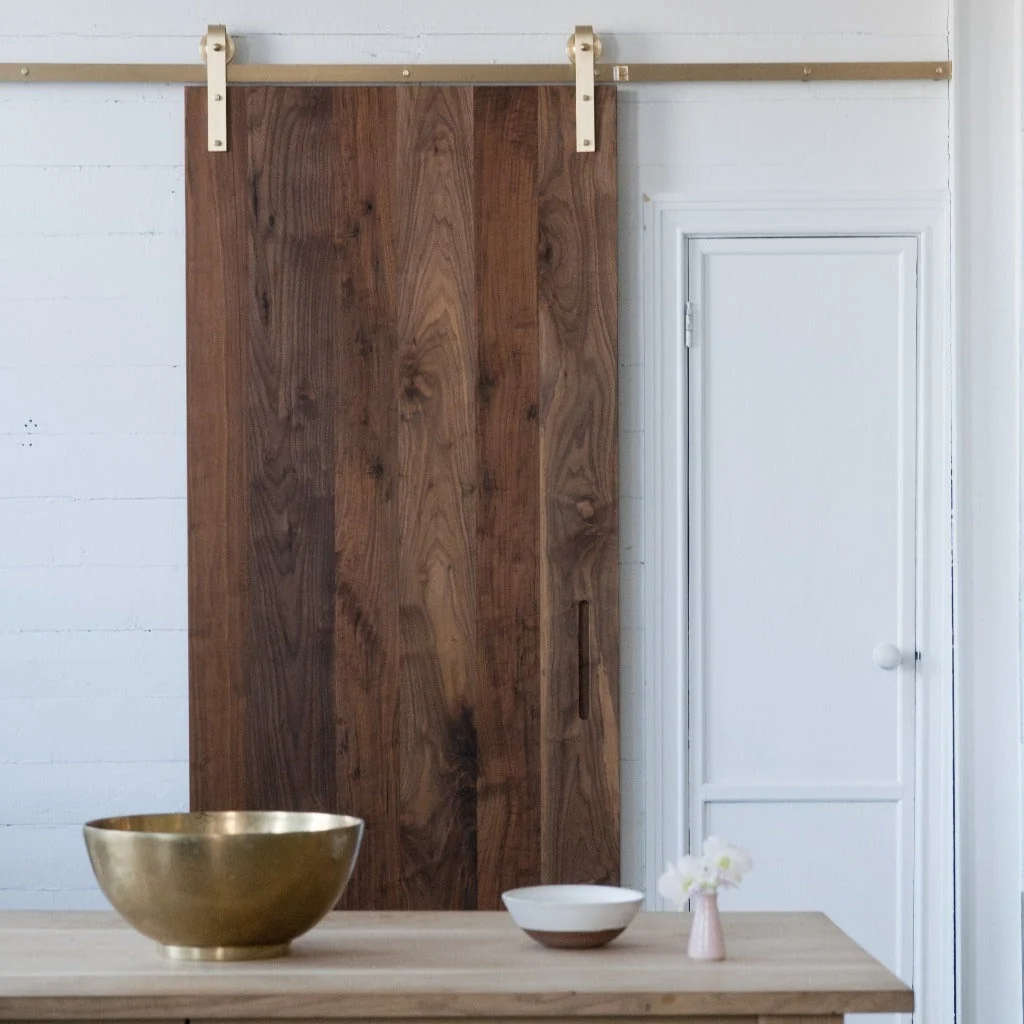

The Barn Door Hardware (Face Mount) by 1925Workbench is a single-door sliding track system in solid brass, stainless steel, or hot rolled steel. Heritage craftsmanship with exposed mechanisms — functional and elegant. Face-mount configuration.

Designed and manufactured in Toronto by 1925Workbench. Patented in Canada and the USA.

Tracks are custom-cut to your exact length. Contact us with the following for a quote:

Style: Top Mount / Face Mount / Bi-Part
Finish: Brass / Raw Steel / Stainless Steel / Black
Length
Drilling: Pre-drilled or Not drilled

Specifications

Weight Capacity
Rated for doors up to 200 lbs per pair of hangers (actual capacity varies by wall structure and mounting method)
Pre-Drilled vs. Not Pre-Drilled
Pre-drilled holes spaced every 14.75"–17.25" along the track
Pre-drilled tracks must be mounted on a backing piece to clear baseboards or mouldings
Not pre-drilled tracks can install directly to the wall if baseboards are flush and adequate blocking is present
For Black Powder Coated "Not Pre-Drilled" orders, a 1.5" hole is drilled at each end for hanging during the coating process
Track Length & Measuring
Track length: order at least twice the width of the door plus a minimum 2" overlap on each side
Door should be 4" wider than the opening (2" overlap per side) and large enough to cover any door casing
Tracks over 93" ship in two pieces
Recommended headroom: 8"–10" (minimum 6")
Custom Finishes
For custom powder coating, a 5/16" diameter hole is drilled at each end of the track for fabrication (both "Drilled" and "Non-Drilled" orders). For Single Track Bypass: 1" from the end; for other hardware: 1.5" from the end.
Additional Components
Door guides (floor guide or wall guide) included in the kit. Extra floor guides available separately.
Floor Guide — bracket on the floor at the base of the door to keep it in place
Wall Guide — mounts to baseboards or directly to the wall
Price includes hardware only. Door and header piece not included.

Materials

Crafted from solid brass, stainless steel, and hot rolled steel. High-quality solid brass rollers with double built-in ball bearings deliver smooth, quiet door motion.

Available Finishes

Solid Brass (light oil coat — will develop patina over time)
Stainless Steel (hand-brushed)
Hot Rolled Steel (raw, minimal treatment)
Matte Black (powder coated)

Suitable for outdoor applications — finishes will patina more quickly when exposed to the elements.
